Lathe Cross Slide Shield Carriage Safety Guard

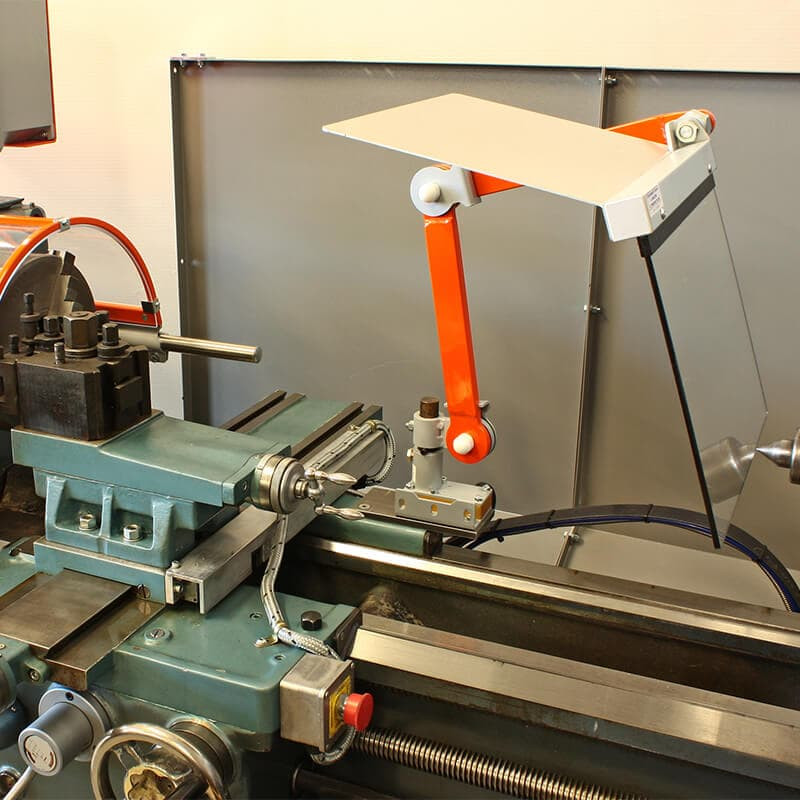

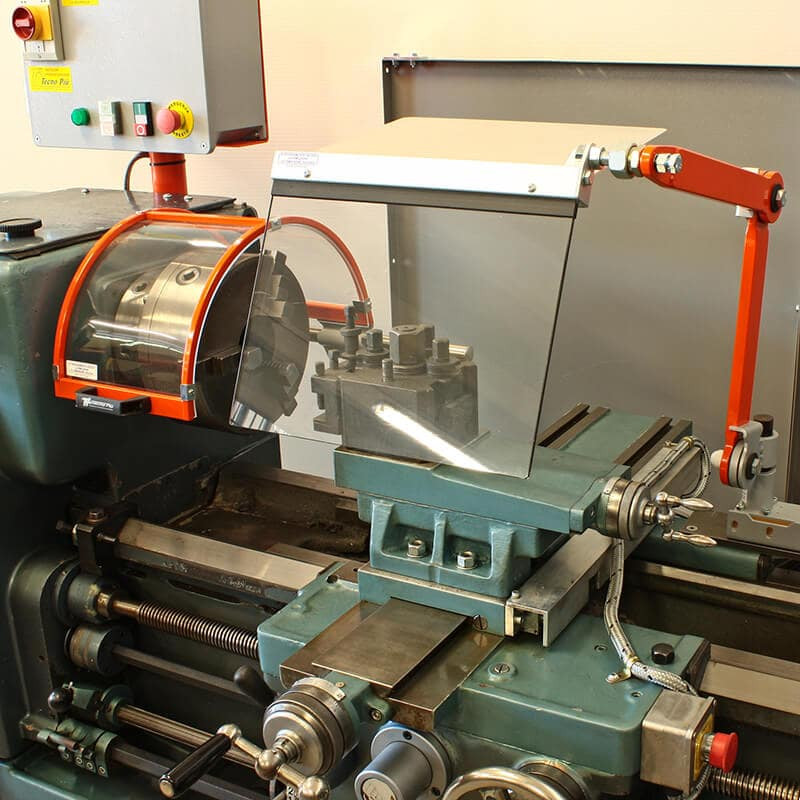

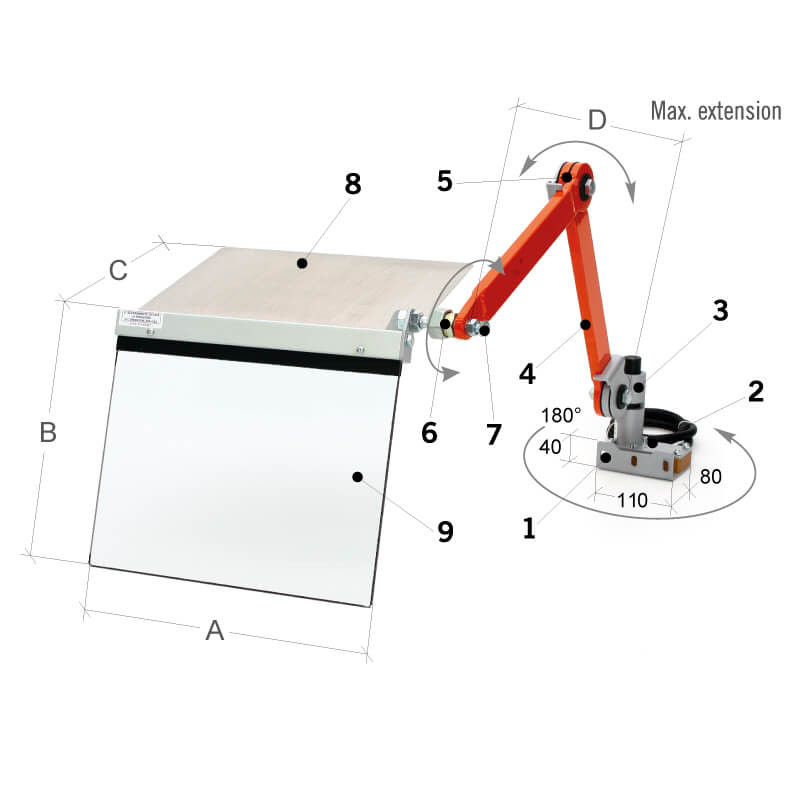

Designed to maximize operator safety, the MST-TO10/11 guard mounts behind the lathe’s longitudinal carriage and is supported by a robust articulated arm attached to a fully adjustable anchoring point. Due to its tubular steel structure and friction-disk joints, the shield can be positioned easily to suit various turning operations. Other available accessories.

Thanks to the ball socket joint, the system includes an anti-chip partition and a shockproof, oil-resistant plastic shield, providing a reliable barrier against flying debris, coolant splashes, and accidental contact with rotating components of the chuck. Its upper section in aluminum reinforces structural rigidity and long-term durability.

Each model is equipped with a high-reliability electrical interlock system — the lathe cannot start unless the guard is properly closed. This safety microswitch system ensures optimal protection and full compliance with OSHA, ANSI, ISO-EN, and CE international standards.
