Prismont

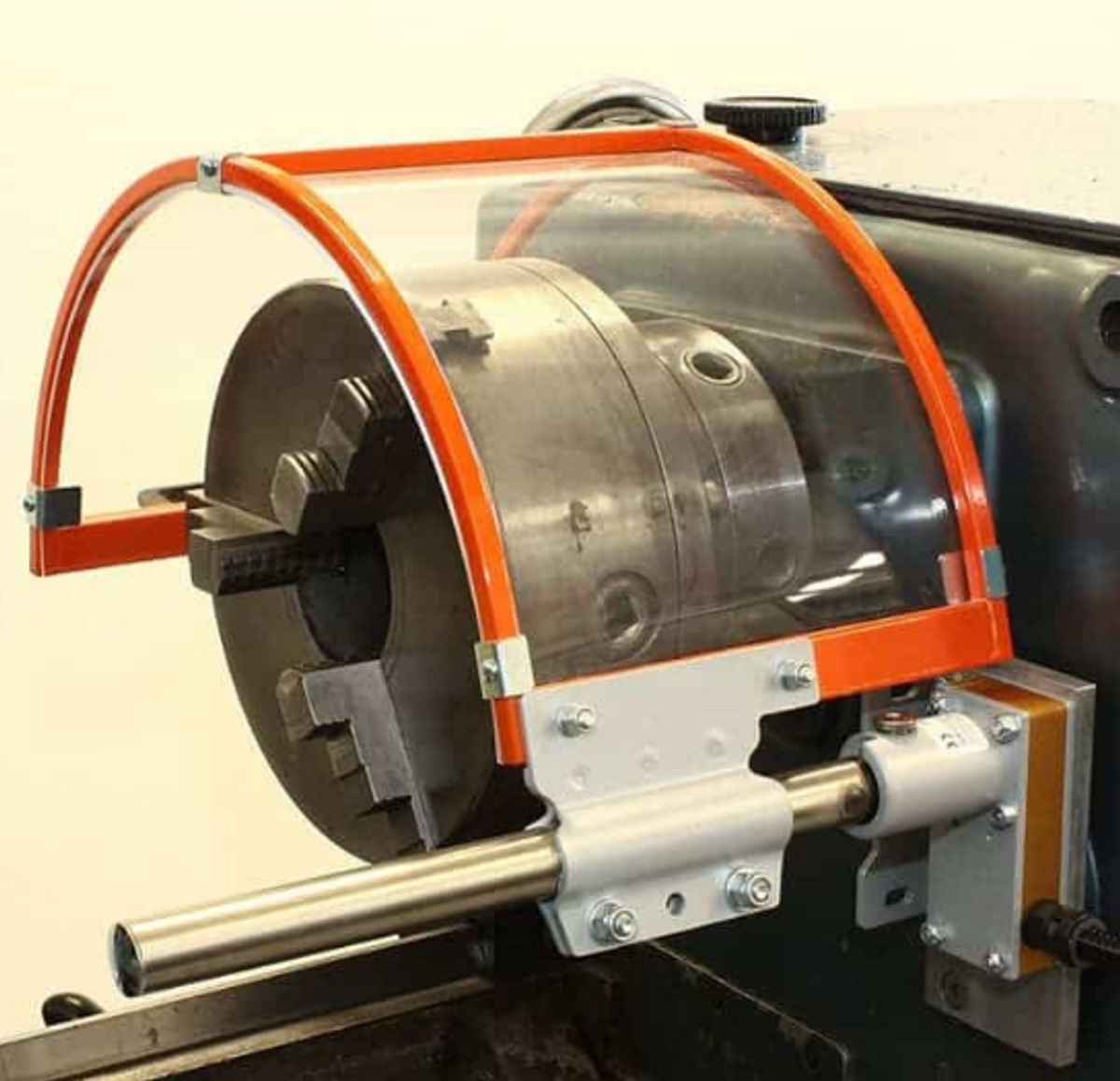

Prismont Interlocked Lathe Chuck Shield

Product NameQTY

300mm Dia

SKU: 413109

$610.00

400mm Dia

SKU: 411061

$634.00

500mm Dia

SKU: 411062

$660.00

600mm Dia

SKU: 412495

$695.00

Main Components (numbered on diagram)

  1. Frontal and lateral anchorage stirrup
  2. Safety microswitch main box - 90°rotation- n.2 NC contacts – interlocked shield
  3. Shield connection clamp with pressed steel support arm
  4. Tubular steel shield structure
  5. Thermo-shaped shield - in shockproof and oil-resistant plastic material

This product meets OSHA, ANSI, ISO-EN, and CE standards. It is electrically interlocked for maximum safety.

The shield is equipped with a safety microswitch. When the shield is lifted, the lathe power supply is immediately cut off, preventing accidental chuck rotation.

Interlock Switch Specifications
Contact arrangement: 2NC
Switching ability: 4A @24V AC
4A @120 DC, .3A @250 V DC
Mechanical life: 1 million switching cycles
Enclosure rating: IP 67
