Silvaflame

Silvaflame Milling Machine Cutter Guard

Product NameQTY

Non Interlocked

SKU: 410364

$495.00

Interlocked

SKU: 410365

$630.00

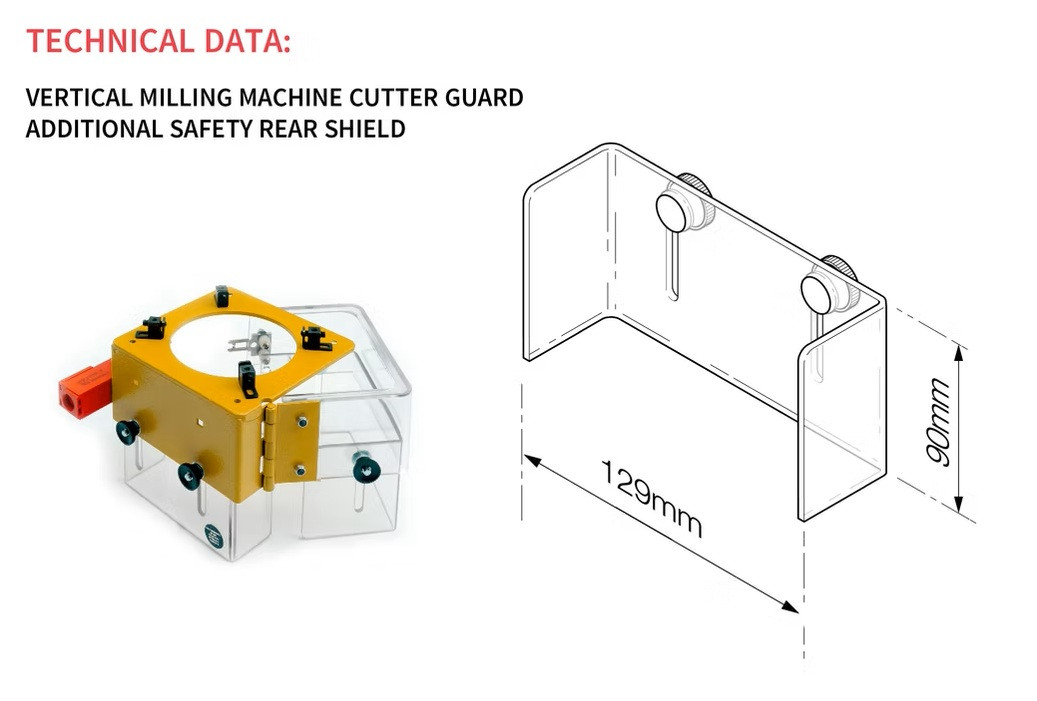

Silvaflame Miller/Cutter Guard Rear Shield

SKU: 412302

$112.00

Silvaflame Miller/Cutter Guard Visor Shield

SKU: 413093

$120.00

Silvaflame Miller/Cutter Guard Body Shield

SKU: 413094

$150.00

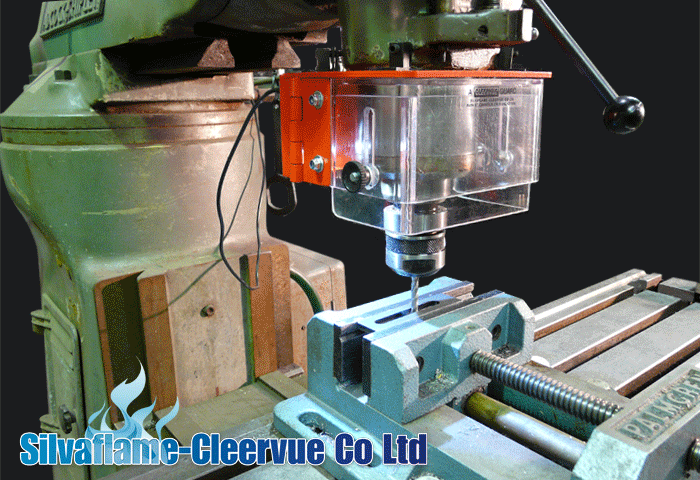

This unique design totally encloses the dange zone of verticle milling machines.  Manufacturered from sheet steel with a clear 4mm adjustable polycarbonate visor, the shield is side hinged allowing immediate access for bit and chuck changes.

  • Mild steel with 4 mm polycarbonate visor, adjustable to suit machine depth stop bracket
  • Remains stationary allowing depth stop collar and chuck to pass through length adjustable vizor
  • Attaches to miller head by means of pinch screws/bracket
  • Accommodates heads up to 5.75in and spindles up to 4.5in



The body is the front top polycarbonate shield and the visor is the front bottom polycarbonate shield.
